Precision Thermoforming (Vacuum Forming) Solutions
We honor great design by ensuring it becomes a flawless product. With skill and dedication, our hands bridge your vision to reality.
Custom Thermoforming Manufacturer In China – GoodTech
What Is Thermoforming?
Thermoforming is a versatile manufacturing process where a thermoplastic sheet is heated to a pliable forming temperature, stretched onto or into a specific mold, and trimmed to create a finished part.
Vacuum forming is the most common type of thermoforming. In this process, a heated plastic sheet is draped over a mold, and a powerful vacuum is applied to draw the sheet tightly against the mold’s surface. This allows for the creation of crisp details and consistent wall thickness for a variety of geometries.
Compared to injection molding, thermoforming is often the preferred choice for large-dimension parts and low-to-medium volume production runs due to its significantly lower tooling costs and faster development cycles. Unlike injection molding which requires complex, high-pressure steel tools, thermoforming typically uses single-sided aluminum or composite molds, reducing both cost and lead time.
Key Benefits of Thermoforming & Vacuum Forming
Low-Cost Tooling
Ideal for Large Components
Rapid Prototyping and Production
Design Flexibility

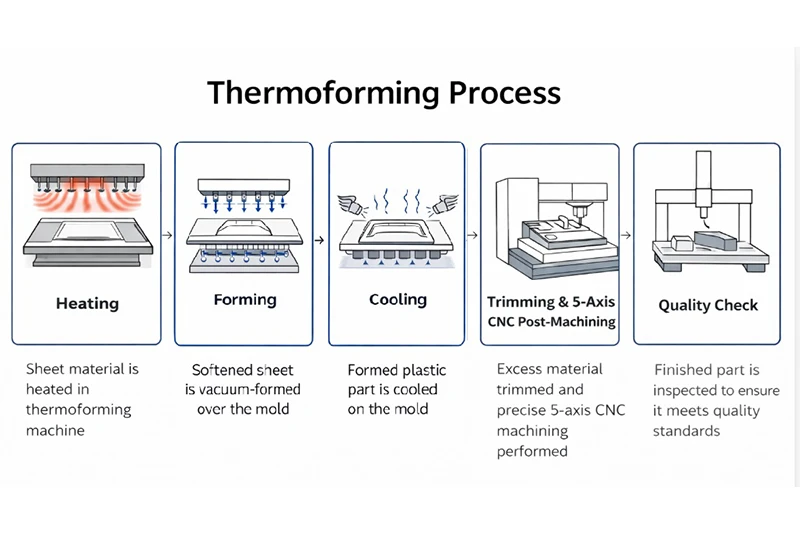

Thermoforming Process
- Material Selection & Programmable Heating: The process begins with high-quality thermoplastic sheets loaded directly into the forming machine. Our machines feature a matrix of accurately controlled heating elements. Every single heating element can be individually adjusted and controlled by a program written by our engineers. This allows us to meet the precise forming requirements for different materials and complex geometries by creating a custom heat profile.
- Forming: The softened sheet is moved over the mold. Atmospheric pressure (via vacuum) pulls the sheet into every contour of the mold. For more complex shapes, pressure forming may be used to enhance detail.
- Cooling: Once formed, the plastic is cooled while still on the mold to ensure it retains its shape and achieves dimensional stability. We utilize controlled airflow and cooling systems to minimize cycle times.
- Trimming & 5-Axis CNC Post-Machining: After the part is removed from the mold, the excess material is trimmed away. We utilize high-precision 5-axis CNC machines to post-machine the part using custom-designed fixtures. These fixtures ensure the part remains perfectly stable and aligned, allowing for complex 3D trimming and accurate hole placements that precisely match your CAD specifications.
- Secondary Operations & Quality Check: The final part may undergo painting, silk-screening, or assembly. Every part is inspected by our quality team to ensure it meets ISO standards.
What Materials Can Be Thermoformed?
We work with a diverse array of high-performance thermoplastic materials sourced from global leaders to meet the specific demands of your industry
| Material | Key Properties | Typical Applications |
| ABS | Tough, impact-resistant, available in various textures | Automotive interiors, industrial covers, enclosures |
| HIPS | Cost-effective, easy to form | Trays, disposable packaging, point-of-purchase displays |
| PETG | Transparent, chemically resistant, FDA-compliant | Medical housings, food-grade displays, sterile packaging |
| HDPE | Highly durable, moisture-resistant | Heavy-duty industrial components, outdoor equipment |
| Polycarbonate (PC) | Extremely strong, heat-resistant, high clarity | Safety equipment, machine guards, transparent covers |
| PVC | Flame-retardant, chemically stable | Aerospace interiors, transit panels, electrical enclosures |
| Kydex庐 / Acrylic-PVC | High impact strength, fire-rated (FAR 25.853) | Aviation cabin components, tactical equipment |
Industries & Applications
Thermoforming is a vital technology for sectors requiring high-strength, lightweight, and aesthetically pleasing plastic components.

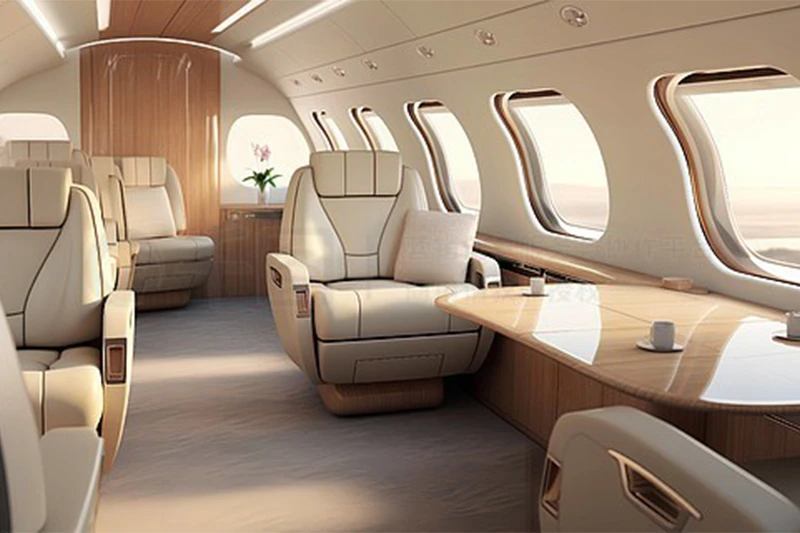

Aviation & Aerospace

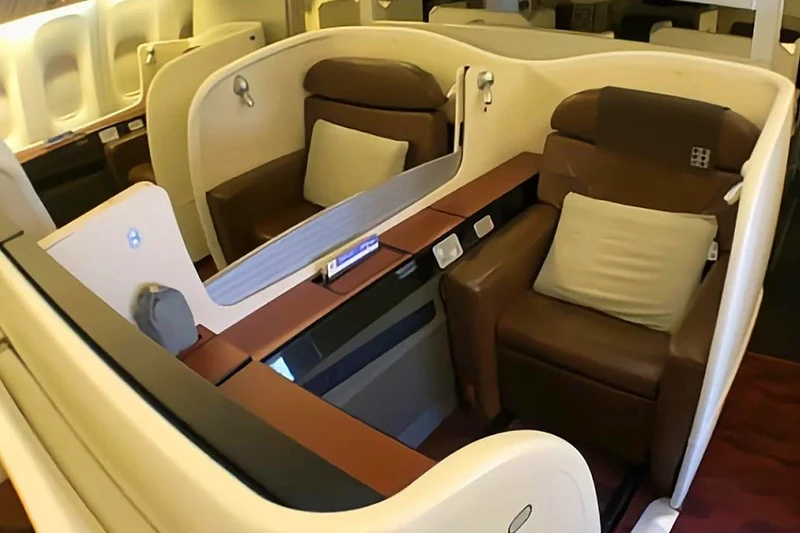

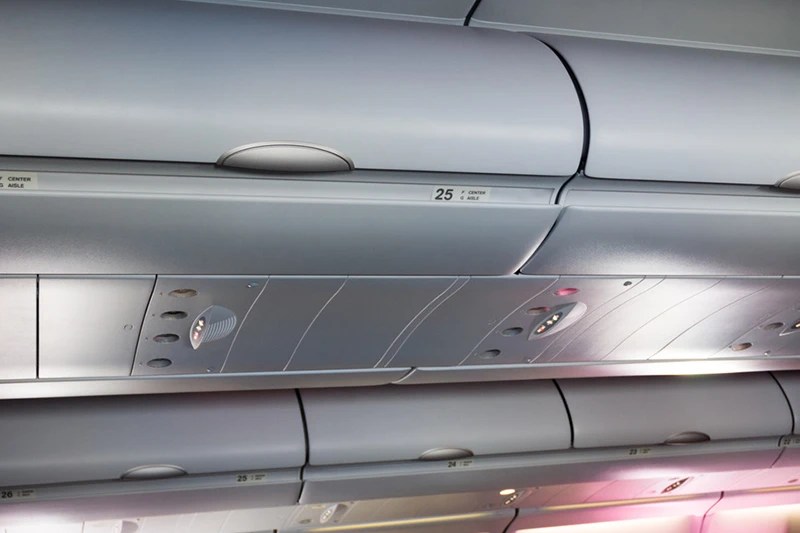

We produce high-performance interior components such as seat backs, tray tables, window shrouds, and cabin wall panels. By utilizing Kydex® and Lexan® sheet materials, we ensure all parts meet the rigorous fire-retardant (FR), low smoke emission, and toxicity (FST) requirements essential for aviation safety standards (such as FAR 25.853). Our large-format capability allows for seamless production of continuous cabin panels.

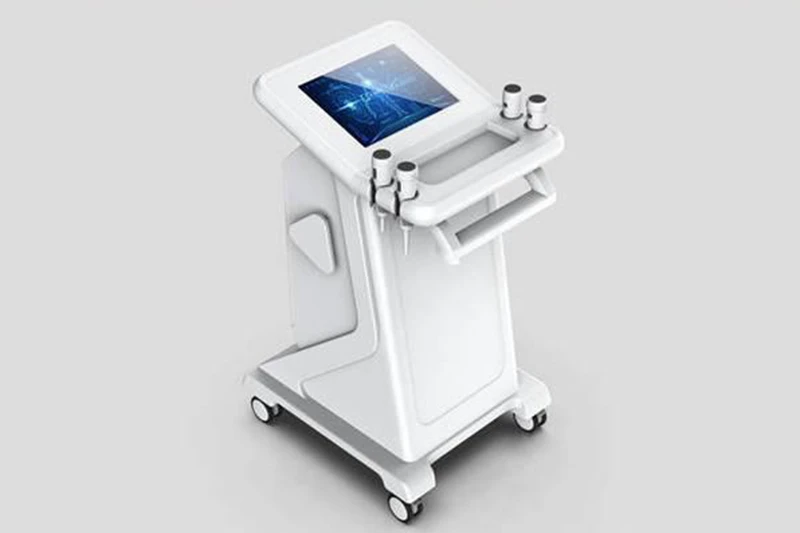

Medical & Healthcare
Thermoforming is ideal for medical applications requiring cleanliness, chemical resistance, and precision. Our offerings include:
- Diagnostic equipment housings
- Sterilization trays and instrument organizers

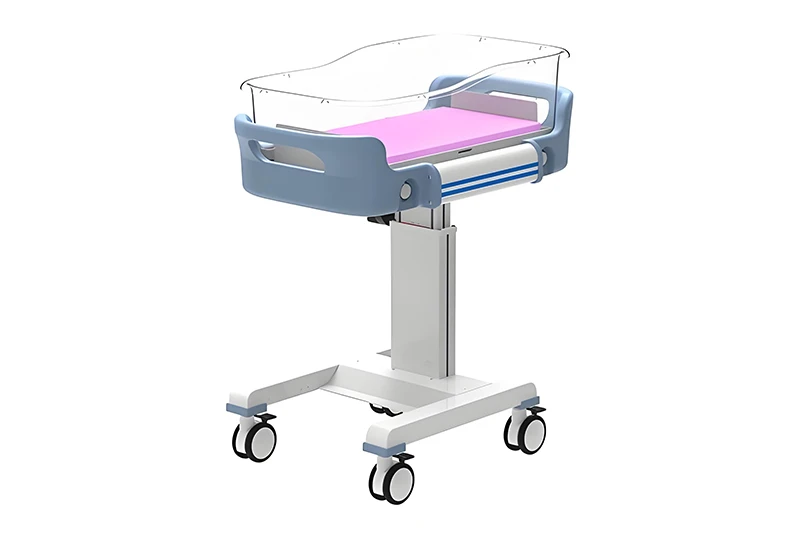

- Hospital bed components and patient care equipment

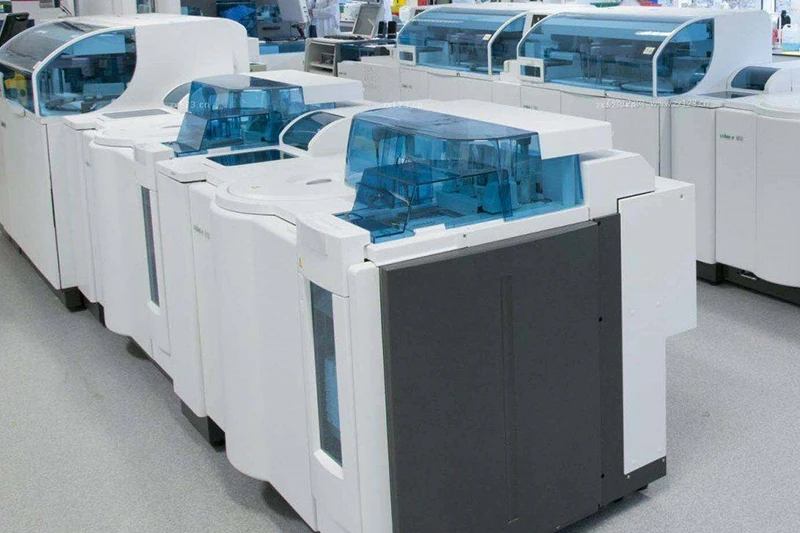

- FDA-compliant PETG enclosures for laboratory devices
Automotive & Transportation

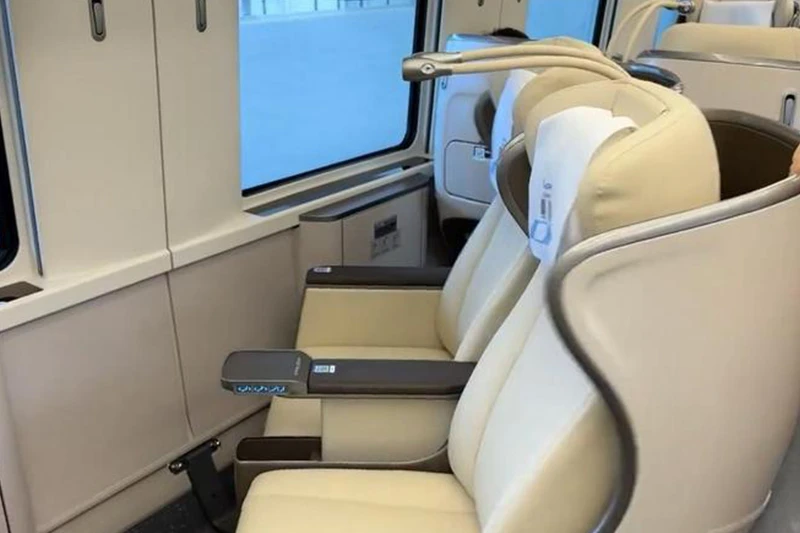

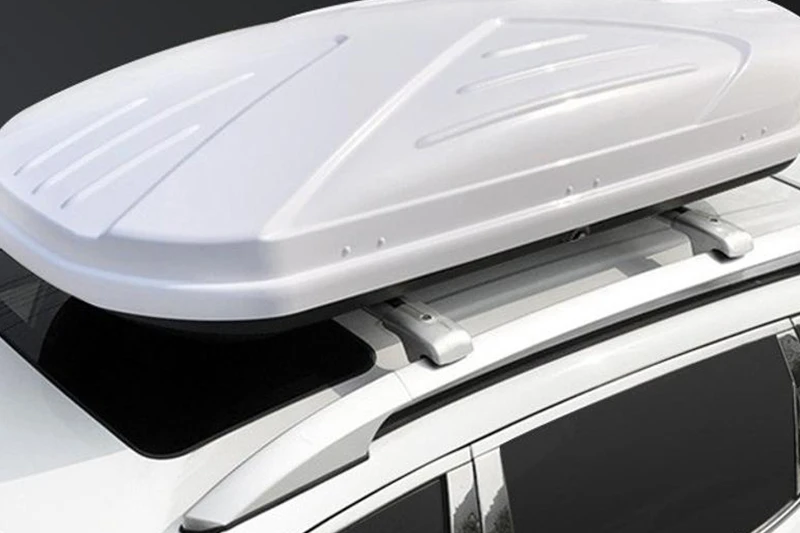

From interior trim to exterior components, we supply durable, lightweight parts that reduce vehicle weight and assembly time. Common applications include:

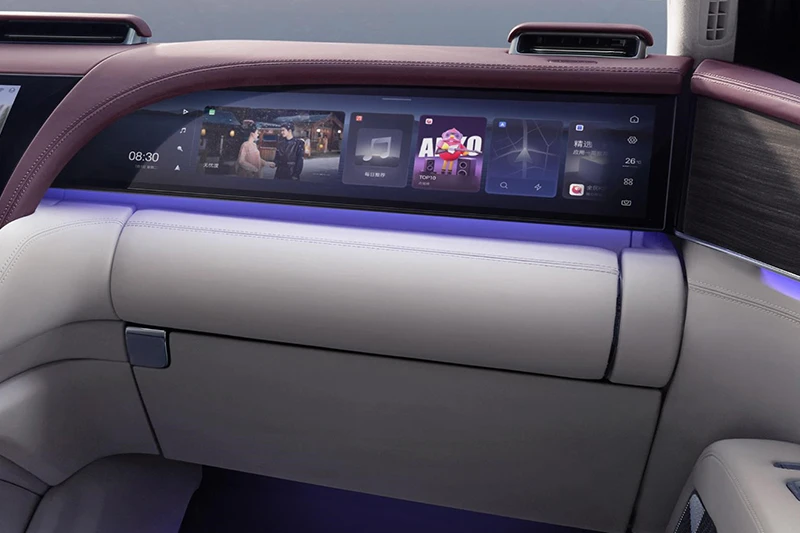

- Interior trim panels and dashboard components
- Door panels and cargo liners
- Exterior body panels and fairings
- Heavy-duty protective liners for commercial vehicles

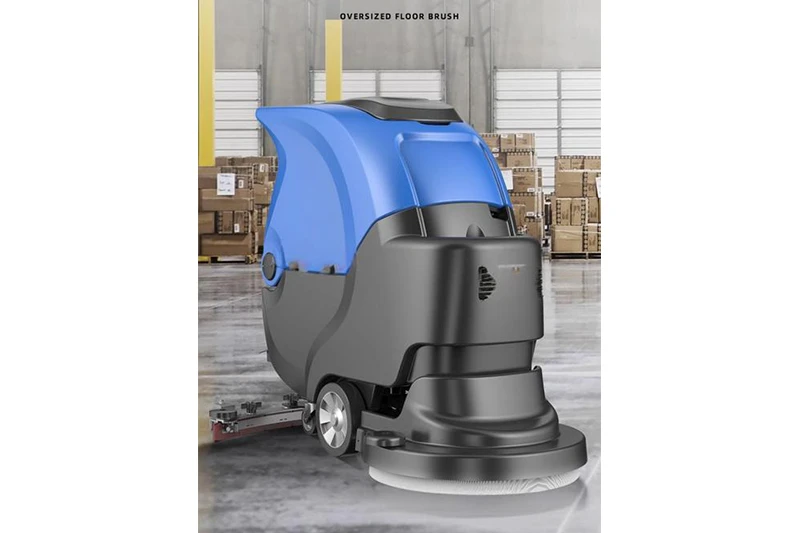

Industrial Equipment
Our large-format forming capability is ideal for demanding industrial applications:
- Machine guards and safety covers
- HVAC system enclosures
- Heavy-duty equipment housings
- Custom pallets and material handling trays
Consumer Goods
We serve the consumer market with aesthetically finished, durable components:

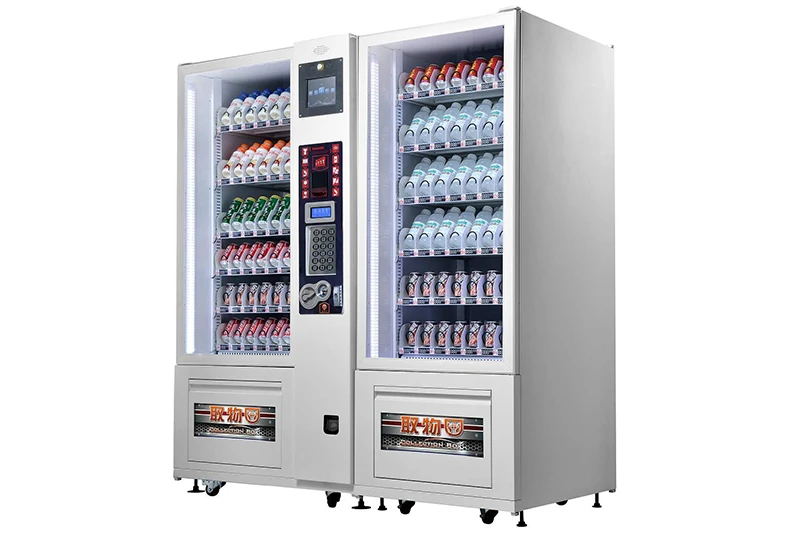

- Large-scale kiosks and vending machine exteriors

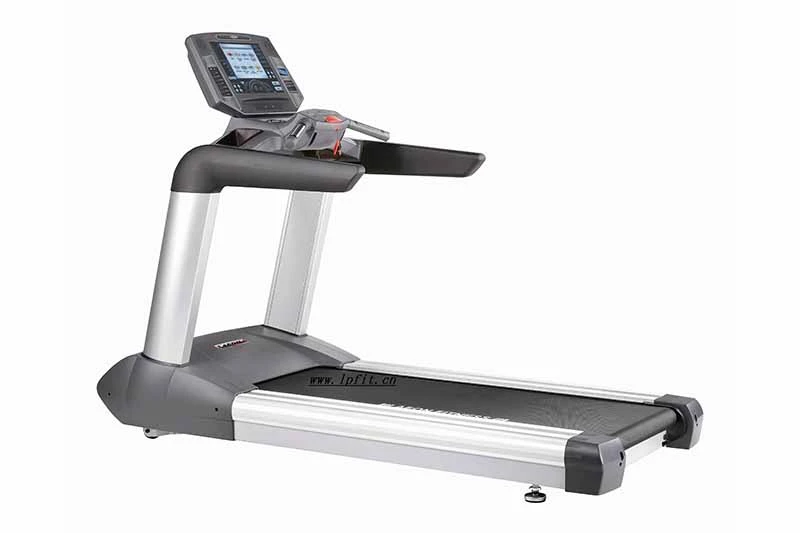

- Fitness equipment covers
- Recreational vehicle components
- Point-of-purchase displays
Quality Assurance at GoodTech
We ensure that every part — whether a large industrial cover or a precision medical housing — meets your exact specifications through the following integrated processes
Design for Thermoforming (DFM) Support
Our engineering team reviews your 3D model early in the project to optimize for manufacturability. We provide recommendations on：
- Proper wall thickness to prevent webbing or thinning
- Draft angles and radius for reliable part ejection
- Parting line placement and mold design
- Material selection based on mechanical, thermal, and regulatory requirements
This proactive DFM approach minimizes tooling revisions, reduces cycle time, and accelerates your time-to-market.
Precision Tooling Fabrication & Maintenance
We design and fabricate high-quality molds specifically for thermoforming applications：
- Tools are machined from aluminum or advanced composite materials for optimal heat transfer and durability
- Surface finishes range from high-gloss polish to engineered textures per your specifications
- We maintain a strict tool maintenance schedule to ensure consistent part quality across production runs
Strict Material Control & Full Traceability
All thermoplastic sheets are stored in climate-controlled environments to prevent moisture absorption and material degradation. We maintain：
- Full batch traceability for every roll or sheet
- Incoming material inspection against material certifications
- Compliance documentation for FDA food-contact, UL flammability, and aviation FST standards
Upon request, we provide material certificates, RoHS/REACH compliance declarations, and upstream supply chain documentation.
Process Control with Digital Monitoring
Our thermoforming machines feature programmable zone heaters and closed-loop process controls. For each project, we:
- Develop a specific heating profile that matches the material and part geometry
- Record and lock forming parameters (heating curve, vacuum pressure, cooling time)
- Ensure repeatability from the first part to the last across production batches
This digital approach eliminates guesswork and ensures consistent dimensional and cosmetic results.
Comprehensive Quality Inspection
We employ advanced metrology tools to verify part accuracy:
- CMM (Coordinate Measuring Machine) inspection for critical mounting features and hole positions
- Laser scanning for complex surface contour verification against CAD data
- First Article Inspection (FAI) reports provided for project approval
- Statistical Process Control (SPC) implemented for high-volume programs to monitor capability indices (CpK)
Every part lot undergoes documented inspection, with dimensional reports available upon request.
Certifications & Industry Compliance
GoodTech’s quality system is built to meet the requirements of demanding industries:
- ISO 9001:2015 certified for quality management
- RoHS & REACH compliance for environmental and chemical safety
- FAR 25.853 (aviation fire safety) supported through materials like Kydex® and Lexan®
- FDA food-contact compliance available for PETG and other approved materials
We regularly support customers requiring PPAP (Production Part Approval Process) submissions for automotive or regulated applications.
Engineering Support Throughout the Product Lifecycle
We act as a technical partner, not just a supplier. Our team provides ongoing support for:
- Troubleshooting forming challenges during production ramp-up
- Recommending material alternatives to optimize cost or performance
- Continuous improvement initiatives to increase yield and reduce cycle time
- Design iterations based on production feedback
With integrated quality controls from material receiving to final packaging, GoodTech delivers the same level of reliability for thermoformed components as we do for precision injection molded and thermoset molded parts.
